Creating and Using Forms Microsoft Access 2007

Hasil Pencarian Dari : http://www.gcflearnfree.org/access2007



Another way to populate a database is with the use of forms. An Access 2007 form helps the person entering data know exactly what information to enter. This lesson will address the benefits of using forms with a database. It will also show you how to set up a basic form for your Access 2007 database, and will show you how the person entering data will use the form to populate or edit data in the database. You will also learn how to enhance a basic form with a drop down list.

Why Use Forms?

In real life, a form is piece of paper that you fill out so that someone can collect and keep track of specific information about you. Only one record, your record, is captured with any given paper form.

Access 2007 forms work very much the same way.
In previous lessons, you saw that you can populate a database by entering records into the tables themselves. If the database has hundreds of records and many fields to populate for any given record, a table can be overwhelming to the person entering data. An Access form lets your user enter data one record at a time, without having to see the entire table.



Access Form


An Access 2007 form also lets the person entering data know exactly what information to enter, and can even tell him what that information should look like. Adding certain control components to a form -- like a drop down menu -- can dramatically increase the integrity of the data that is held in a database.
A database owner wants to control the levels of access that other database users have to the data -- because the fewer people that are interacting with the data, the lower the chance that the data can become compromised. Corrupt data is not useful! Forms are one more way that the database owner can limit the actions of the other users. Form properties can be set so users can only enter records or only view records.

Creating a Form

Access 2007 has several automatic tools for creating forms. These tools are located in the Forms group on the Create tab in the Ribbon, as seen below:

Forms Command Group


The Access 2007 forms tools include:

• The Form command makes a basic form, showing a single record at a time.
• The Split Form command creates a form showing one record on top, and includes the datasheet view of entire source table on the bottom.
• The Multiple Items command creates a form that shows all the records at once, which looks very similar to the source table in datasheet view.
• The Form Wizard is hidden under the More Forms command. It walks you through the process of creating more customized forms.

To Create a Form using the Form Command

The basic Form command is the one we suggest, because it allows the person entering data to see just one record at a time. It also includes all the fields in your source table for you, and you can modify the layout of the basic form to hide fields or add controls.
To create a form using this command:

• Begin by highlighting the table you wish to use as a source table.
• With the source table highlighted, select the Form command from the Forms command group in the Create tab on the Ribbon.
• The new form is created and opens in the object pane.

The newly created form has the same name as the source table by default. You can give the form a new name by saving the form. You will be prompted to give the form a name.

Using Forms to Enter Data

Populating a database is easy once you have a basic form in place. Record navigation works the same way for forms as it did for tables. The Navigation Bar is located in the bottom left of the object pane. The Navigation Buttons work the same way they did for the tables, also. The following picture shows the navigation buttons for a form.

To Add a Record using a Form

To add a record to the database using a form:

• Navigate to a new record, either by using the New Record navigation button, or the New command in the Records group on the Ribbon.
• Then, simply add the new data.
Your data must be entered using an acceptable format. The acceptable formats were established when the field properties were set.
• Finally, you must save the record.
  Save by using either the Save command on the Ribbon, or by progressing to another record using the New (Blank) Record navigation button. Moving to a new record saves the most recently entered record. However, it may be necessary to refresh the table in Datasheet View to see the newest record.

To Edit Records using a Form

Just like in a table, the database user can edit records from a form using the Find and Replace command. This command works exactly the same way for a form as it does in a table.

Creating a Drop Down List

Using a drop down list on a form can increase the integrity of the data in the database, because drop down lists force the form user to select one of the pre-set options in the list to populate the field. These types of form controls are relatively easy to set up using the Combo Box.

To Create a Drop Down List using a Combo Box Control

With the form opened in Design View, select the Combo Box command in the Controls group on the Design tab in the Ribbon

Drag and drop the Combo Box sizing tool to create the Combo Box where desired on the form.

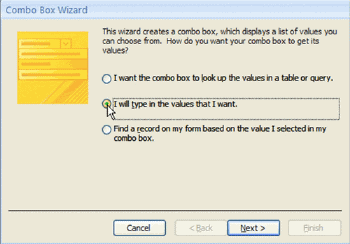

The Combo Box Wizard appears.



• Choose the desired option from the Wizard, and click Next.
• Because the middle option was selected in the example above, the Wizard progresses to the next step, which asks for the values to be typed into a small table.



• Next, the Wizard asks what to do with the entered values. Access can either remember the values for later use, or can populate a field with the entered values. Use the drop down list to select which field Access should use to store the values.

• Once the desired option has been selected, click Next.
• Finally, the Wizard gives the Combo Box a generic name, which may be meaningful to you later if there is ever a need to adjust the properties of this or another Combo Box. If you choose, give the Combo Box a name and click Finish.

Whatever name is entered will appear as a label on the form. This label may be deleted, if desired.

Switch to Form View to see how the Combo Box works. The Category drop down list appears on our Books form, as seen below.
